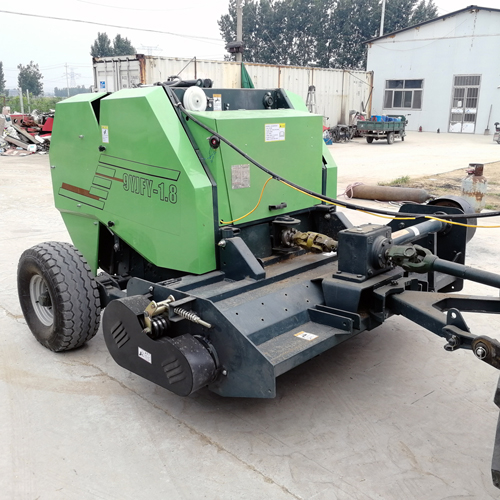

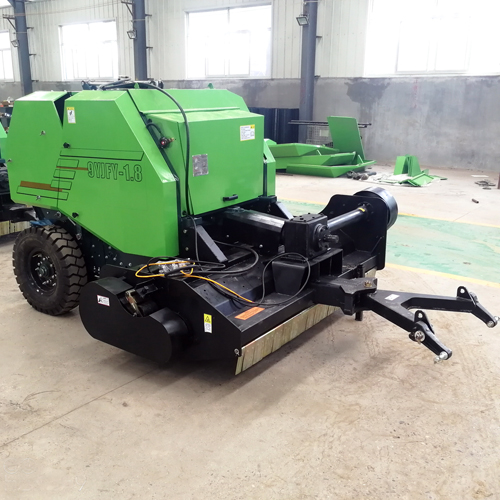

Round baler with cutter

If you are uncertain with what kind straw balers to  choose, you may consider about these factors below:

• farm (field) acreage;
• type of crop;
• hay equipments you already had. such as, tractor, rake, mower, fork and etc;
• desired shape and size of bales;
• storage demands and end usage for bales;
• throughput capacity of the balers;
• price of baler and average cost for bales;
• other factors such as, moisture, loss rate, wrap materials and etc.

straw crushing round baler advantages

• The bales made by our machine are well-tied and have good air permeability, thus being convenient to transport and store.
• Our machine is simple to operate and of good quality, so it can reduce the labor intensity and save labor.
• The straws recycled by the machine can be used for paper making or straw power generation, effectively reduce or eliminate incineration phenomenon, reduce environmental pollution and improve agricultural ecological environment, which has remarkable ecological benefits.







Round straw baler features

• The most efficient baler
• 2.1m pickup width
• With cutter system
• Net wrapped type
• Self lubrication system
• Auto system with plc control

Model	YK0910F	YK0910FW
Bale size(diameter x width)	900 X 950mm	900 X 950mm
Dimensions	2450x1850x1600mm	3000x2200x1650mm
Weight（approx)	930kg	1550kg
Pickup width	1000mm	1800mm
Working speed	2-5km/h	2-5km/h
Capacity(bales/hour)	60-120	60-120
Weight of bale(approx)	30-50kg	30-50kg
Horsepower requirement	40-80HP	60-100HP
Package size	2500X1800X1600mm	1500x1800x2200mm

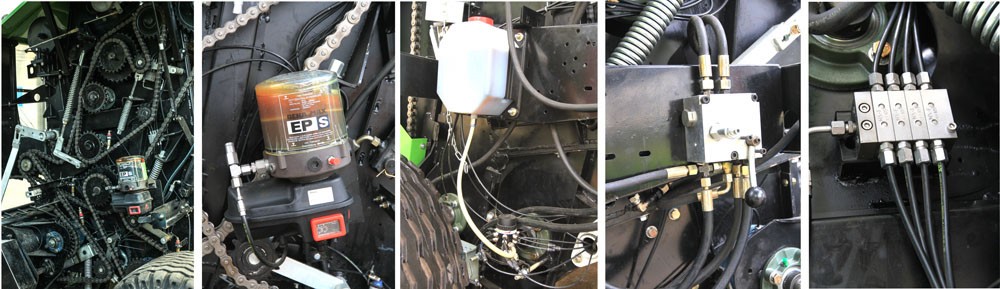

Auto oiling system

Auto oiling system imported from Germany, filling lubricant and butter into gears and bearing continues.

Monitor

Indicate the working status, warning when chamber is full, feeding net auto, and warning when the bales ejected.

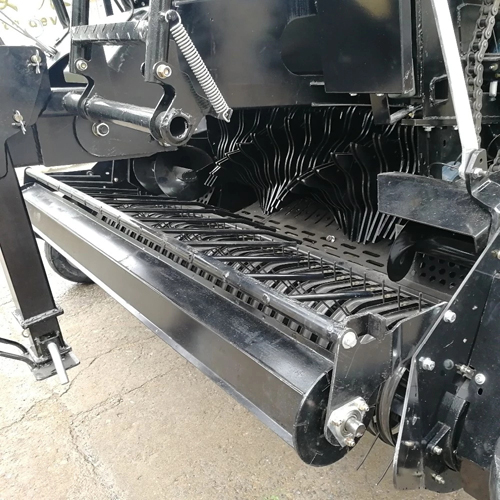

Pickup and feed parts

Spring teeth, auger and roto feeding together. Roto cutter with blades(optional) can cut the material into pieces around 7cm.

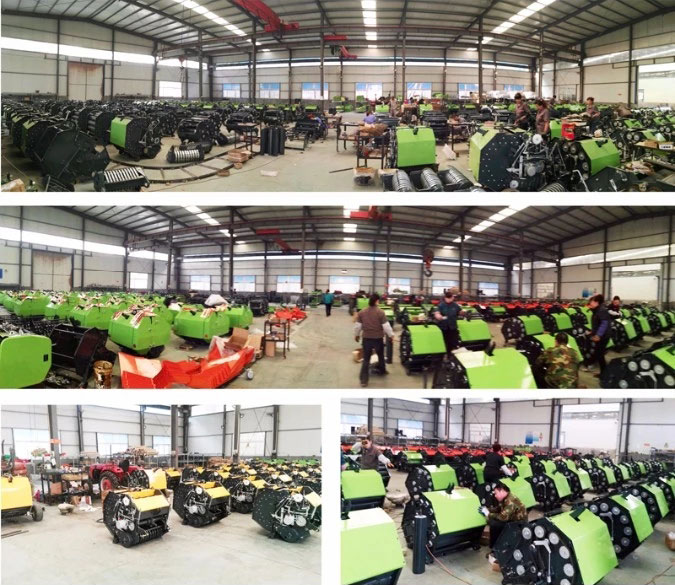

Our workshop

Pre-Sales Service

• Inquiry and consulting support.
• Sample testing support.
• View our Factory.
• Advanced technology, strict testing management.

After-Sales Service

• Training how to instal the machine, training how to use the machine.
• Engineers available to service machinery overseas.
• Enough sparts in ware house.
• Quick response, fast action in distinguishing and sending spare parts by DHL.
