Grass pellet machine

Grass is available in farmland, lawn and residential green belt. It a common material to make feed pellets and biofuel pellets. Grass pellet making machine is a specialized equipment for making pellets from grass and other biomass materials.

Why you should make grass pellet fuel

• As grass has lower density than wood material, it causes less wear and tear to grass pellet making machine. And the grass pelletizer can work at higher speed and productivity.
• Grass is more economical and available than other wood materials.
• Grass pellets fuel can be used in pellet stove, furnace, water heater, industrial boiler and electric plant. They boast low carbon emission and high combustion rate.
• The BTUs of grass pellets is the same as wood pellets, but the ash residue is a little more than wood pellets. So we recommend you to mix wood pellets with grass pellets to reduce the ash residue.
• As we know, the water content in raw materials for making wood pellets should be lowered to 10%-18%. Grass materials are more lose, which can be dried by air on the field, and save a great deal of cost compared with wood.
• Grass is more convenient to store and transport than bulky grass materials, for it has less volume and contains less dusts.
• Making grass pellet fuel has become a prevalent business all over the world. Biomass pellets are energy-efficient, eco-friendly and economical, which has receive supports from governments and NGOs.

How to make grass pellet fuel

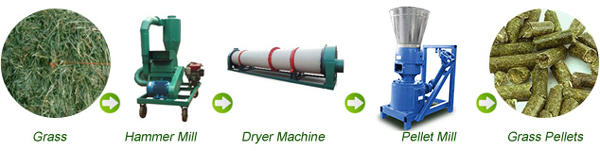

Making high quality grass pellet fuel takes the following steps. The major equipment is a grass pellet making machine.

Dry grass materials

Mow the grass and lay them in an open place. Keep the layer thin and let them dried by the sun and wind. Limit the moisture content to between 10% and 18%.

Preheat the grass pellet making machine

Start the grass pellet making machine, and wait a few minutes for preheat, so that it can melt sway the lignin in grass and make it easier to combine.

Collect the produced grass pellets

Before feeding grass materials into the hopper of grass pellet making machine, you need put a container under the outlet to collect the produced pellets.

Check the pelletizing effect

Inspect the quality of grass pellets. If they are crumbly, this indicate the raw materials are too dry. You need to add water to them. If the grass pellets are pasty, this shows the moisture content in materials is too high. You need dry them further.

Cool the grass pellets

Don’t pack the grass pellets right after pelletizing. Leave them in good ventilation status until they get cooled.

Packing the grass pellets

Collect the unused grass pellets and package them in bags for further use or sale. These grass pellets are useful in cooking, heating and power generation, etc.

Choose high-efficiency grass pellet making machine

A high-efficiency grass pellet making machine can help you make grass pellets at high speed and low cost, and improve the molding rate and lower the material waste as much as possible. Our grass pellet making machine can be driven by electric motor, diesel engine, gasoline engine, and PTO (power take off). Their production capacity are from 100 to 400 kg/h.

You don’t need to add any binder to the materials, but some binders may improve the pelletizing effect. Besides, you can also mix different biomass materials together to make pellets with different properties.

Type	Model	Power	Capacity (kg/h)	Weight (nw/gw)	Packing size (mm)
Electric motor	ZLSP-D 150B	5.5kW	50-100	95/110	800x450x700
	ZLSP-D 200B	7.5 kW	80-120	200/230	1050x480x930
	ZLSP-D 230B	11 kW	120-200	290/320	1180x540x1000
	ZLSP-D 260B	15 kW	160-250	320/360	1240x540x950
	ZLSP-D 300B	22 kW	250-400	350/380	1300x560x1100
Diesel engine	ZLSP-D 150A	8HP	50-100	180/220	100x500x750
	ZLSP-D 200A	15 HP	80-120	210/240	1460x750x900
	ZLSP-D 230A	22 HP	120-200	280/310	1560x850x1100
	ZLSP-D 260A	30 HP	160-250	330/360	1200x500x1070
	ZLSP-D 300A	41 HP	250-400	410-450	1220x600x1000
Gasoline engine	ZLSP-150Q	7.5HP	90-120	180-220	1000x500x750
PTO	ZLSP-D 150P	≥8 HP	50-100	90-110	900x540x1020
	ZLSP-D 200P	≥15 HP	80-120	130/150	1000x540x1020
	ZLSP-D 230P	≥22 HP	120-200	175/200	1000x540x1020
	ZLSP-D 260P	≥33 HP	160-250	235/255	1050x540x900
	ZLSP-D 300P	≥41 HP	250-400	305/325	1100x540x1000

Advantages of grass pellet making machine

• The roller and flat die is designed based on a multitude of experiments to achieve the best compression ration, largely improving the molding rate.
• The drive system adopts high-precision gear drive. Low noise.
• High quality bearing and oil seal to ensure stable performance and long service life.
• We can provide flat die with different hole size to fit various materials.
• The materials it can process includes grass, hay, alfalfa, timothy, straw, sawdust, etc.
• All our pellet making machines have obtained CE and ISO certifications.
